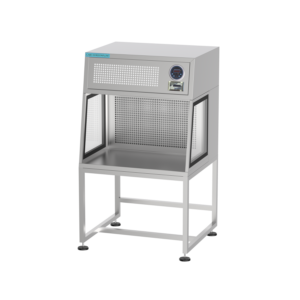

Horizontal Laminar Air Flow
At Isoclean Services, we provide high-quality Horizontal Laminar Air Flow Systems engineered to deliver a clean and controlled working environment for contamination-sensitive applications.
Our systems are ideal for pharmaceutical facilities, laboratories, research institutions, and electronics manufacturing units where maintaining clean, particle-controlled conditions is essential for reliable operations and product quality.
At Isoclean Services, our Horizontal Laminar Air Flow Systems are designed to provide a continuous stream of clean, filtered air across the working area. Air passes through HEPA filters and flows horizontally from the rear of the unit toward the front, helping reduce airborne particle contamination in sensitive workspaces.
These systems are suitable for applications requiring controlled air cleanliness, making them useful for laboratory procedures, pharmaceutical operations, research activities, and electronics manufacturing.
- Manufactured using SS 304 / SS 316 stainless steel or MS powder-coated materials.
- Equipped with HEPA filters offering 99.97% efficiency at 0.3 microns.
- Fitted with pre-filters to capture larger dust particles before the air reaches the HEPA filtration stage.
- Built with a sturdy, durable, and corrosion-resistant structure.
- Designed to support applicable GMP and ISO cleanroom requirements.
- Portable Design: Available with caster wheels for convenient movement and repositioning.
- High-Efficiency HEPA Filtration: Helps remove airborne particles from the supplied air.
- Uniform Horizontal Airflow: Provides a consistent stream of filtered air across the work zone.
- Low-Noise Operation: Designed to support a quieter working environment.
- Energy-Efficient Motor Blower: Delivers controlled airflow with optimized energy consumption.
- Compact Construction: Designed to fit into laboratories and other space-conscious work areas.
- Optional UV Light: Available as an additional feature for appropriate decontamination procedures.
- Pharmaceutical manufacturing and processing facilities.
- Laboratories and scientific research centers.
- Hospitals and healthcare institutions.
- Cleanrooms and controlled work environments.
- Electronics and electrical equipment manufacturing.
- Quality control, testing, and inspection areas.
- Construction Material: SS 304 / SS 316 stainless steel or MS powder-coated steel.
- Filtration System: HEPA filter with 99.97% efficiency at 0.3 microns.
- Air Velocity: 0.3–0.5 m/s, subject to the selected model and design.
- Power Supply: 230V / 50Hz.
- Mobility: Heavy-duty caster wheels available for portable configurations.
- Noise Level: Designed for low-noise operation.
- Dimensions: Custom-built to meet specific workspace and application requirements.
- Custom Dimensions and Airflow Capacity: Unit sizes and airflow configurations tailored to operational needs.
- Advanced Filtration Options: HEPA or ULPA filter configurations based on the required air cleanliness level.
- UV Decontamination Feature: Optional UV system to support additional decontamination procedures.
- Digital Control Panel: Optional digital controls for convenient operation and system monitoring.
- Material and Surface Finish: Different material grades and finish options to suit hygiene, durability, and application requirements.
